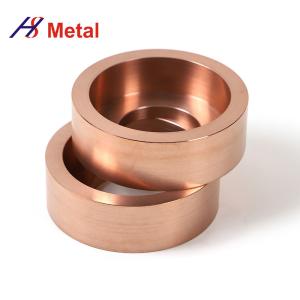

Round WCu Alloy Ring 90W 95W Tungsten Copper Alloy For ECM Electrodes

Model Number : WCu Dics&Ring

MOQ : Negotiate

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000sets/month

Delivery Time : 30 days after receiving down payment

Packaging Details : Standard export cartons

Name : WCu Alloy Ring

Material : 90W 95W Tungsten Copper

Shape : Dics&Ring

Application : Electrical

Grade : W50Cu50,W60Cu40,W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10

Feature : high temperature resistance, high intensity, etc

Contact Now

Round 90W 95W Tungsten Alloy Products WCu Alloy Ring

Quick Details :

Shape: disc, disk, round sheet
Grade: W60Cu40, W65Cu35, W70Cu30, W75Cu25, W80Cu20, W85Cu15, W90Cu10
Density: 11.85-16.75g/cm3
Material: tungsten copper alloy, copper tungsten alloy
Feature: high temperature resistance, high intensity, etc
Application: EDM&ECM electrodes, Machining other parts

Parameters

Class

Chemical Composition (wt%)

Density

Hardness

Resistivity

IACS

Bending Strength

Cu

Total Impurities≤

W

g/cm3 ≥

HB Kgf/mm2 ≥

μΩ.cm ≤

% ≥

MPa ≥

W50/Cu50

50±2.0

0.5

Balance

11.85

115

3.2

54

—

W55/Cu45

45±2.0

0.5

Balance

12.3

125

3.5

49

—

W60/Cu40

40±2.0

0.5

Balance

12.75

140

3.7

47

—

W65/Cu35

35±2.0

0.5

Balance

13.3

155

3.9

44

—

W70/Cu30

30±2.0

0.5

Balance

13.8

175

4.1

42

790

W75/Cu25

25±2.0

0.5

Balance

14.5

195

4.5

38

885

W80/Cu20

20±2.0

0.5

Balance

15.15

220

5

34

980

W85/Cu15

15±2.0

0.5

Balance

15.9

240

5.7

30

1080

W90/Cu10

10±2.0

0.5

Balance

16.75

260

6.5

Features

Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.

Applications

1. Arcing contacts and vaccum contacts in high and medium voltage breakers or vaccum interruptors

2. Electrodes in electric spark erosion cutting machines

3. Electrodes for resistance welding.
